| My old Amiga 4000 3/9 | ||
| Uploaded by: HyRax1 | 131 views |  |
 Disable Image Resizing |
||

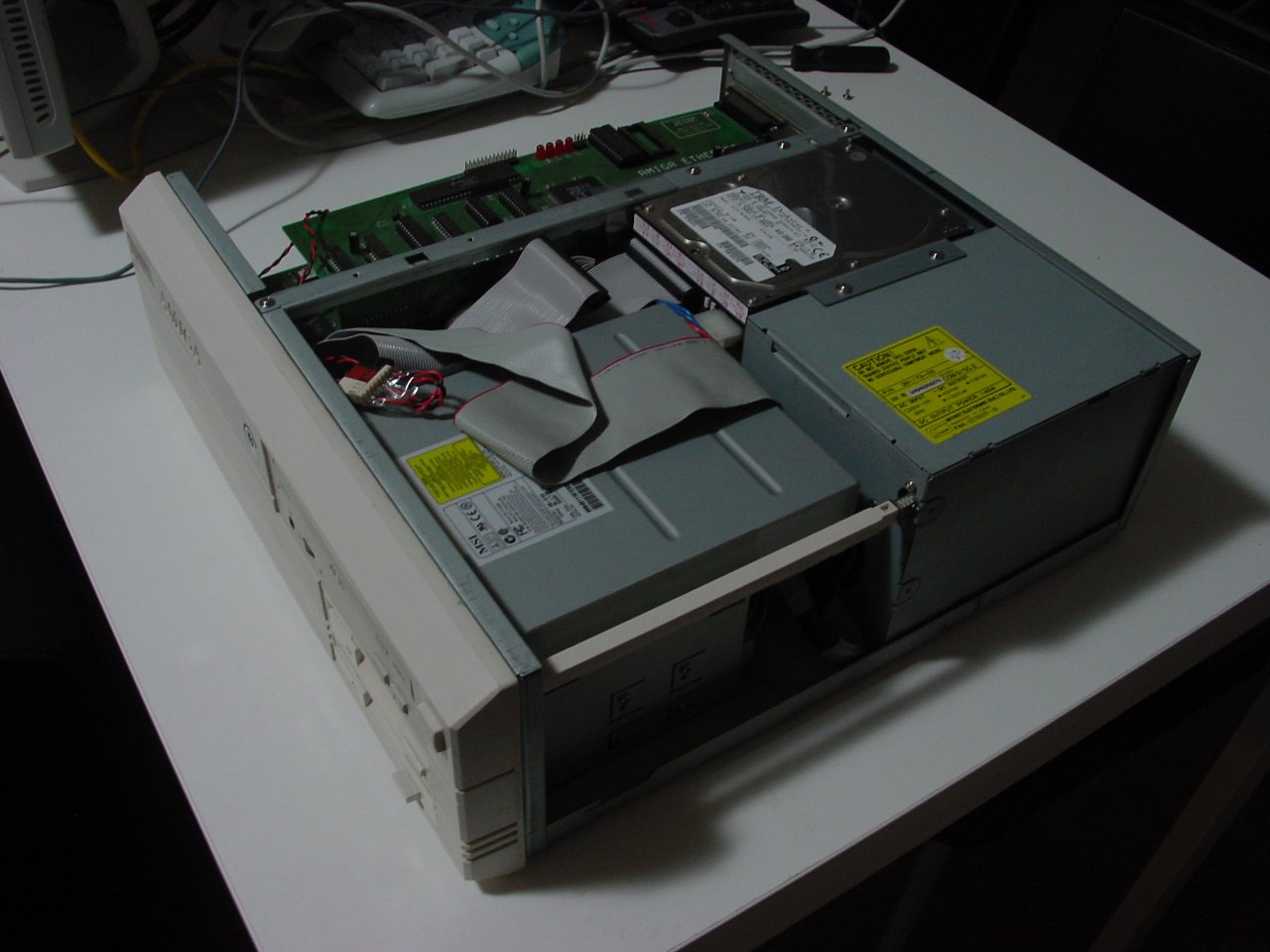

| Top side shot with the lid off. Notice the uber-long stalk from the power button at the front of the machine which pressed the power button on the PSU at the back. Technological ingenuity at its finest. In the middle you can see a couple of IDE cables connecting the optical drive and two IDE HDD's stacked on top of one another, and the expansion cards are on the other side. The little bundle of red cables at the front is a custom made joined that links the HDD activity LED's from the motherboard HDD controller, the SCSI HDD controller and the expansion IDE controller together so that they can all operate the HDD activity light on the front of the Amiga. | ||
