AMD Trinity A10-5800K & GIGABYTE F2A85X-UP4
Date 15th February 2013
Author dirtyd
Editor James "Agg" Rolfe
Manufacturer AMD
Manufacturer GIGABYTE


A85 Chipset
The desktop Trinity platform, 'Virgo', introduces the new FM2 socket, which itself connects to an A series chipset (A55, A75, A85 or A85X).

Click to Enlarge

The A85's best features are the eight SATA 6Gb/s ports, an extra RAID mode (RAID 5) and a plethora of USB options (including four USB 3.0). PCI Express is version 2.0, and the best CrossFire configuration you can hope for is a dual x8 configuration. Not world-beating, but this platform is not designed for ultimate performance machines - and scenarios where PCI Express 2.0 bandwidth is a limiting factor are few and far between for the vast majority of end users.

Click to Enlarge


Gigabyte F2A85X-UP4
Gigabyte has released a selection of motherboards with the FM2 socket, and the F2A85X-UP4 is top dog.

Click to Enlarge

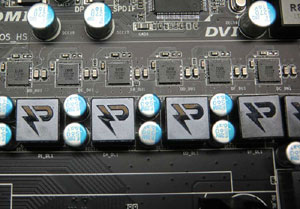

The board contains Gigabyte's extensive digital power delivery circuitry, including separate multi-phase groups for CPU and GPU power.

Click to Enlarge

International Rectifier 3550M IC's provide up to 60A per phase, which is part of a range of components and materials that Gigabyte dubs Ultra Durable 5. Other goodies include 2 oz (32g for the rest of the world) copper PCB, and a new glass fabric which purports to help with humidity protection; a good thing for extreme overclocking, where condensation is the enemy.


This red internal USB header supports Gigabyte's On/Off Charge feature, where you can charge a USB peripheral with up to 300mA instead of the standard 100mA, even when the PC is off.


An Etron IC adds another two USB 3.0 connections to the four provided by the chipset, providing a total of six four on the backplate, and an internal USB3 header that supports another two if you have a modern USB 3.0 case.

Click to Enlarge   Click to Enlarge

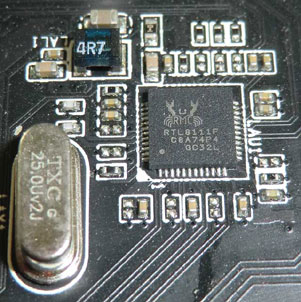

Gigabyte use Realtek solutions for 7.1 channel audio (ALC892) and Gigabit Ethernet (RTL8111F).

Click to Enlarge   Click to Enlarge

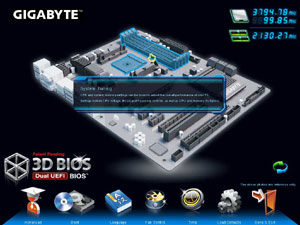

Gigabyte calls this 3D BIOS, which sounds gimmicky, but it's actually pretty handy. Some options (such as CPU feature control) are still buried in the text-only mode, but the most common OC variables are readily accessible. The following sequence of screen grabs (easily attained with F12) are self-explanatory.

Click to Enlarge   Click to Enlarge   Click to Enlarge
